Taegutec TFMBN 880-27R-12

Product Code: 6323409

$1,655.37$1,504.88 Ex. GST

Product Code: 6323409 SKU 6323409 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Taegutec TFMBN 880-27R-12

Taegutec TFMBN 880-27R-12 - Image 2

Taegutec TFMBN 880-27R-12 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

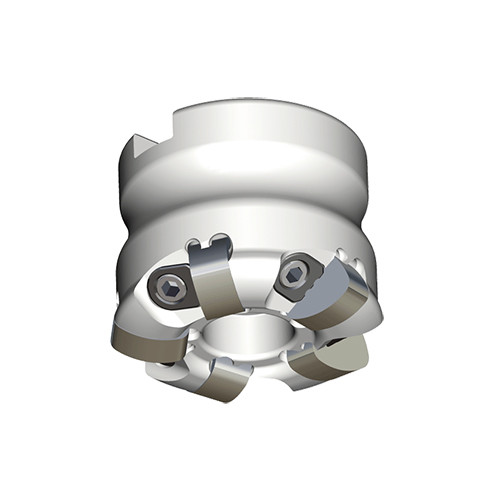

High Feed mills with negative Ceramic inserts of 6 cutting edges & air holes for high speed machining of super alloys in wedge clamping type

Additional information

Weight	1.7450 kg
Dimensions
barcode

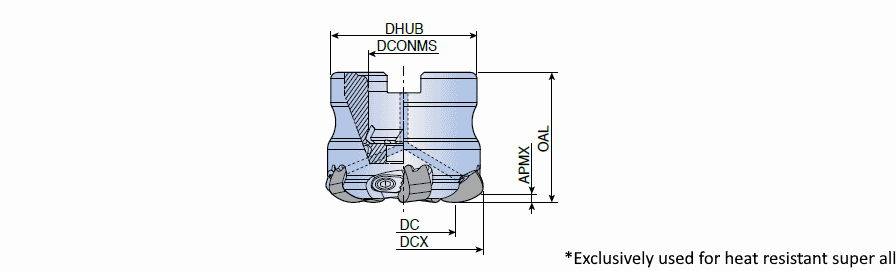

Additional Information	Cutting Diameter (DC/DCX): 80 mm Hub Diameter (DHUB): 70 mm Cutting Diameter (DC): 62.6 mm Master Insert Identification (MIID): BNGX 1207-E04 Cutting Diameter Maximum (DCX): 80 mm Body Material: Steel Cutting Item Count (CICT): 8 Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Depth of Cut Maximum (APMX): 2.5 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 27 mm Unit: M Overall Length (OAL): 2.5 mm

Brand

Taegutec
