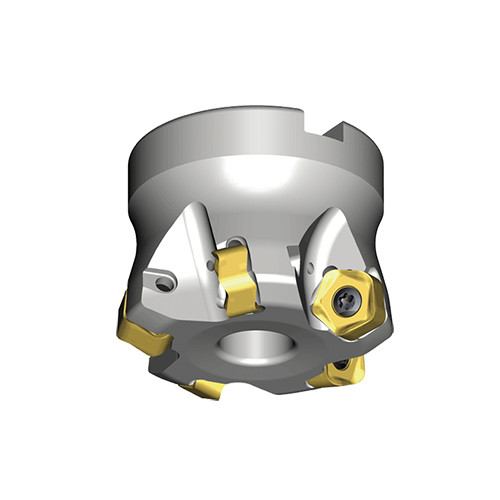

High Feed mills with PTKU 10 inserts of economical 10 cutting edges in maximum depth of cut ap 3.0 mm
Additional information
Weight
2.7700 kg
Dimensions
barcode
Additional Information

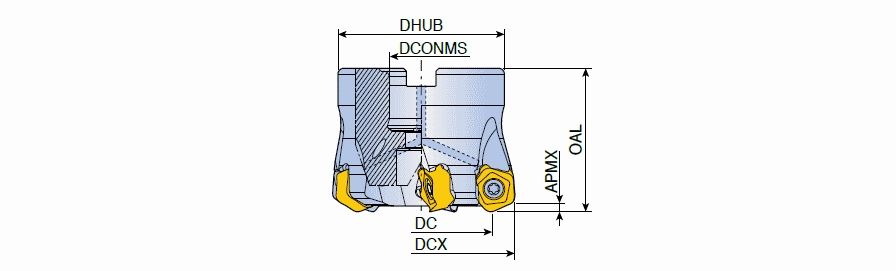

Cutting Diameter (DC/DCX): 100 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Cutting Diameter (DC): 83.4 mm
Master Insert Identification (MIID): PTKU 1006R-M
Cutting Item Count (CICT): 8
Measurement Type: Metric
Depth of Cut Maximum (APMX): 3 mm
Body Material: Steel
Overall Length (OAL): 60 mm
Cutting Diameter Maximum (DCX): 100 mm
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M
