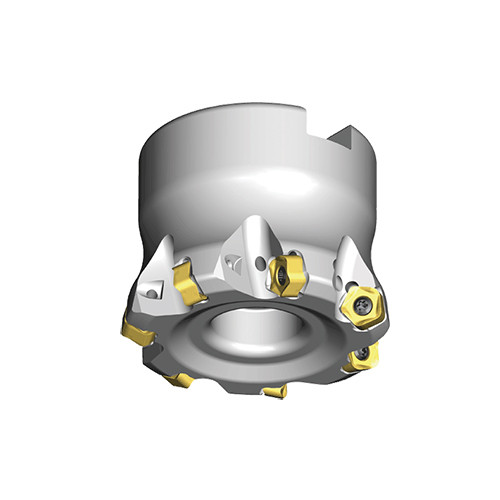

High Feed mills with PTKU 05 inserts of economical 10 cutting edges in maximum depth of cut ap 1.5 mm
Additional information
Weight
1.3400 kg
Dimensions
barcode
Additional Information

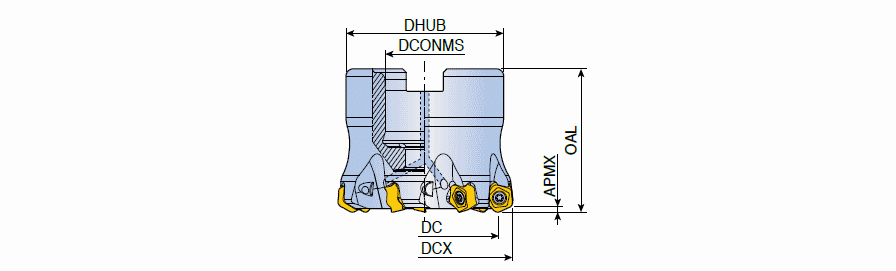

Cutting Diameter (DC/DCX): 63 mm
Connection Diameter Machine Side (DCONMS): 22 mm
Cutting Diameter (DC): 54.8 mm
Master Insert Identification (MIID): PTKU 0503R-M
Cutting Item Count (CICT): 8
Measurement Type: Metric
Depth of Cut Maximum (APMX): 1.5 mm
Body Material: Steel
Overall Length (OAL): 50 mm
Cutting Diameter Maximum (DCX): 63 mm
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M
