Taegutec TFMRN 463-22R-1207

Product Code: 6339460

$1,110.23$1,009.30 Ex. GST

Product Code: 6339460 SKU 6339460 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

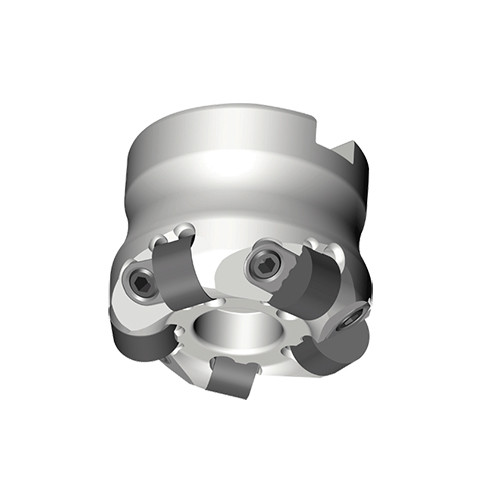

Taegutec TFMRN 463-22R-1207

Taegutec TFMRN 463-22R-1207 - Image 2

Taegutec TFMRN 463-22R-1207 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Face mills with negative round RNGN 12 ceramic inserts & wedge clamp with air hole for high speed milling of super alloys

Additional information

Weight	1.8800 kg
Dimensions
barcode

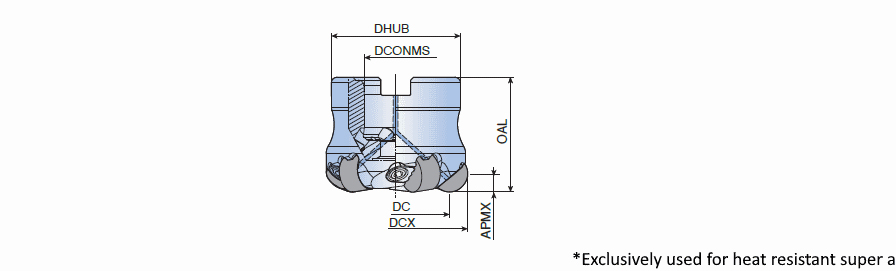

Additional Information	Cutting Diameter (DC/DCX): 63 mm Hub Diameter (DHUB): 47 mm Cutting Diameter (DC): 50.3 mm Master Insert Identification (MIID): RNGN 1207 FL-E Cutting Diameter Maximum (DCX): 63 mm Body Material: Steel Cutting Item Count (CICT): 4 Application:, Facing, Helical Interpolation, Profiling, Rampdown, Depth of Cut Maximum (APMX): 6.3 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 22 mm Unit: M Overall Length (OAL): 6.3 mm

Brand

Taegutec
