Taegutec TFMRN 580-27R-1207

Product Code: 6339461

$1,498.07$1,361.88 Ex. GST

Product Code: 6339461 SKU 6339461 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

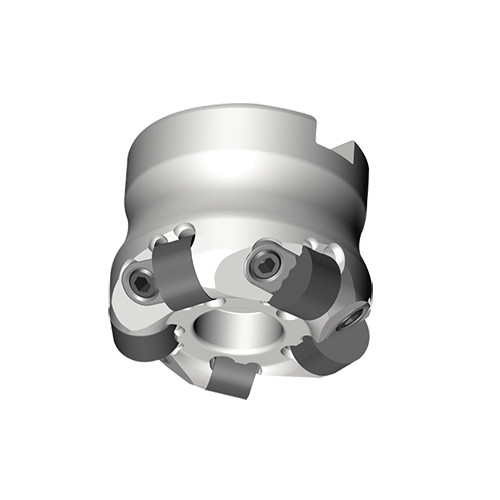

Face mills with negative round RNGN 12 ceramic inserts & wedge clamp with air hole for high speed milling of super alloys

Weight	1.6000 kg
Dimensions
barcode

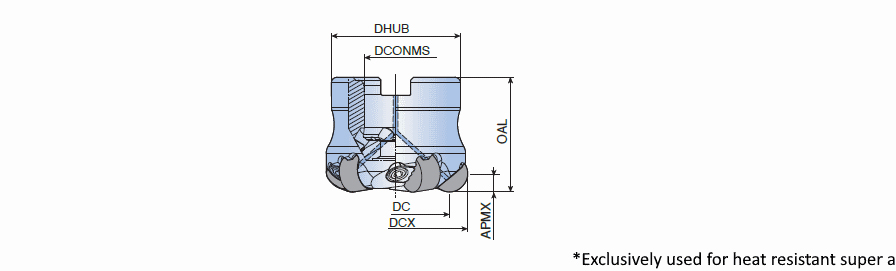

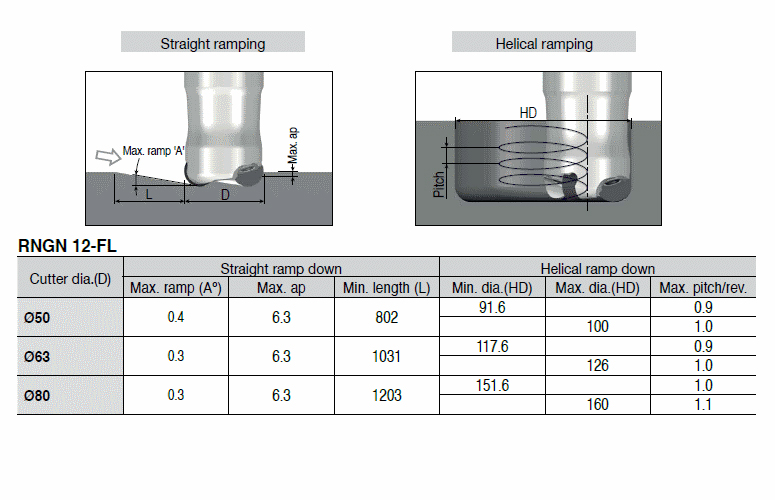

Additional Information	Cutting Diameter (DC/DCX): 80 mm Hub Diameter (DHUB): 58 mm Cutting Diameter (DC): 67.3 mm Master Insert Identification (MIID): RNGN 1207 FL-E Cutting Diameter Maximum (DCX): 80 mm Body Material: Steel Cutting Item Count (CICT): 5 Application:, Facing, Helical Interpolation, Profiling, Rampdown, Depth of Cut Maximum (APMX): 6.3 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 27 mm Unit: M Overall Length (OAL): 6.3 mm
