Taegutec TFMRNS 463-22R-16

Product Code: 3113153

$888.18$807.44 Ex. GST

Product Code: 3113153 SKU 3113153 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

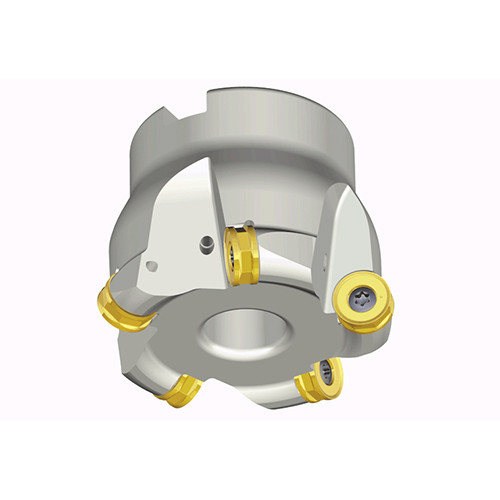

Face mills with double-sided round inserts for general applications and various industries

Additional information

Weight 1.1200 kg
Dimensions
barcode

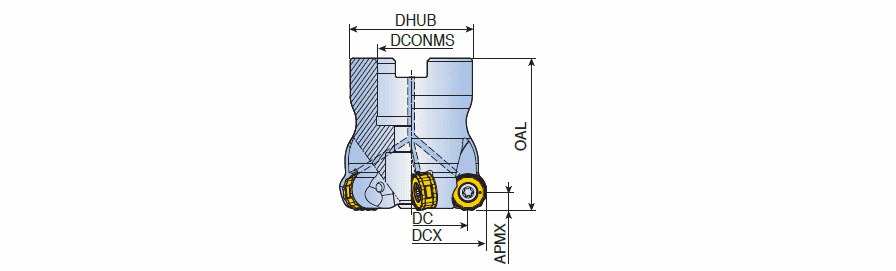

Additional Information

Cutting Diameter (DC): 63 mm
Master Insert Identification (MIID): RNMU 1606-ML
Cutting Item Count (CICT): 4
Body Material: Steel
Depth of Cut Maximum (APMX): 8 mm
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Connection Diameter Machine Side (DCONMS): 22 mm
Measurement Type: Metric
Overall Length (OAL): 50 mm
Unit: M

Brand

Taegutec
