Taegutec TFMRNS 563-22R-12

Product Code: 3108505

$923.70$839.73 Ex. GST

Product Code: 3108505 SKU 3108505 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

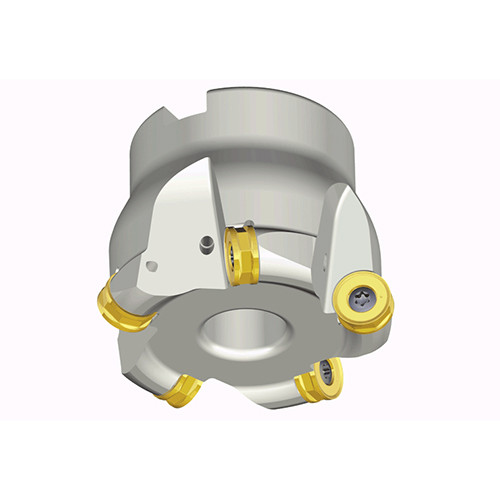

Face mills with double-sided round inserts for general applications and various industries

Additional information

Weight 1.1900 kg
Dimensions
barcode
Additional Information

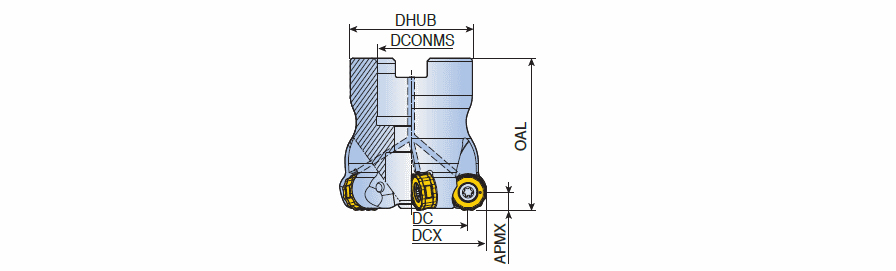

Cutting Diameter (DC): 63 mm
Master Insert Identification (MIID): RNMU 1205-ML
Cutting Item Count (CICT): 5
Body Material: Steel
Depth of Cut Maximum (APMX): 6 mm
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Connection Diameter Machine Side (DCONMS): 22 mm
Measurement Type: Metric
Overall Length (OAL): 50 mm
Unit: M

Brand

Taegutec
