Taegutec TFMRNS 8125-40R-16

Product Code: 3112910

$1,613.30$1,466.64 Ex. GST

Product Code: 3112910 SKU 3112910 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

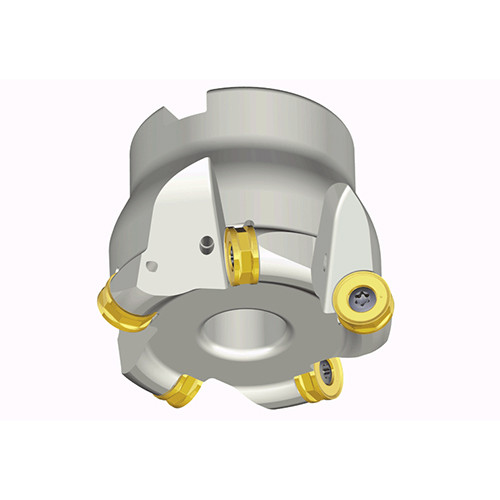

Face mills with double-sided round inserts for general applications and various industries

Additional information

Weight 3.8250 kg
Dimensions
barcode
Additional Information

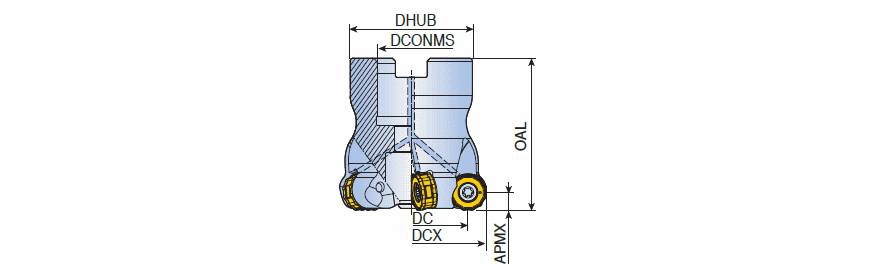

Cutting Diameter (DC): 125 mm
Master Insert Identification (MIID): RNMU 1606-ML
Cutting Item Count (CICT): 8
Body Material: Steel
Depth of Cut Maximum (APMX): 8 mm
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Connection Diameter Machine Side (DCONMS): 40 mm
Measurement Type: Metric
Overall Length (OAL): 63 mm
Unit: M

Brand

Taegutec
