Taegutec TFMRNS 9160-40R-16

Product Code: 6103972

$1,935.96$1,759.96 Ex. GST

Product Code: 6103972 SKU 6103972 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

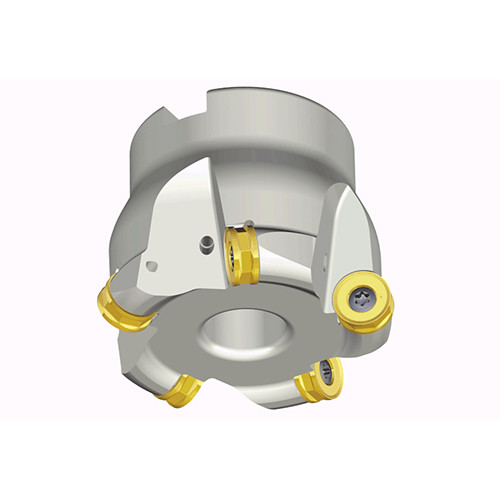

Taegutec TFMRNS 9160-40R-16

Taegutec TFMRNS 9160-40R-16 - Image 2

Taegutec TFMRNS 9160-40R-16 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Face mills with double-sided round inserts for general applications and various industries

Additional information

Weight	4.5550 kg
Dimensions
barcode

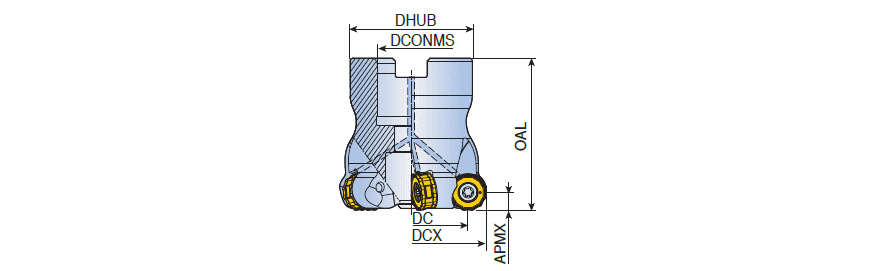

Additional Information	Cutting Diameter (DC): 160 mm Master Insert Identification (MIID): RNMU 1606-ML Cutting Item Count (CICT): 9 Body Material: Steel Depth of Cut Maximum (APMX): 8 mm Application:, Facing, Helical Interpolation, Profiling, Rampdown, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M

Brand

Taegutec
