Taegutec TFMRX 580-25.4R-20

Product Code: 6162294

$998.70$907.91 Ex. GST

Product Code: 6162294 SKU 6162294 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Taegutec TFMRX 580-25.4R-20

Taegutec TFMRX 580-25.4R-20 - Image 2

Taegutec TFMRX 580-25.4R-20 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

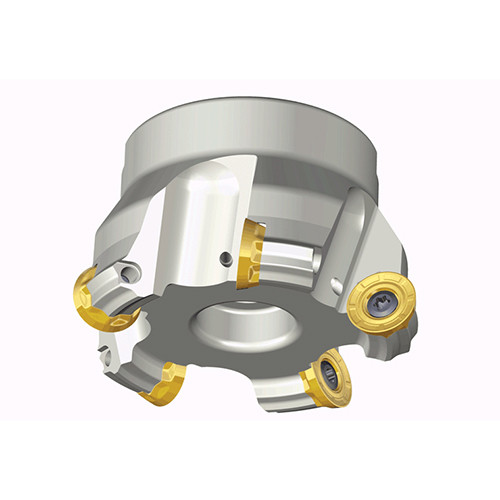

Face mills with positive round inserts of RXM(H)X for general profiling

Additional information

Weight	1.4900 kg
Dimensions
barcode

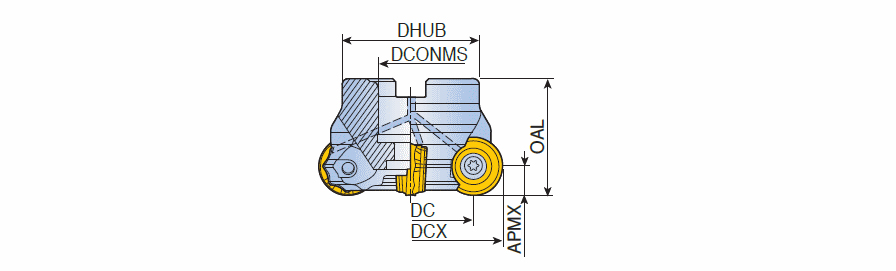

Additional Information	Cutting Diameter (DC): 80 mm Master Insert Identification (MIID): RXMX 2006-M Cutting Item Count (CICT): 5 Body Material: Steel Depth of Cut Maximum (APMX): 10 mm Application:, Facing, Helical Interpolation, Profiling, Rampdown, Connection Diameter Machine Side (DCONMS): 25.4 mm Measurement Type: Metric Overall Length (OAL): 50 mm Unit: M

Brand

Taegutec
