Taegutec TFMRX 8160-40R-20

Product Code: 3104038

$1,551.25$1,410.23 Ex. GST

Product Code: 3104038 SKU 3104038 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

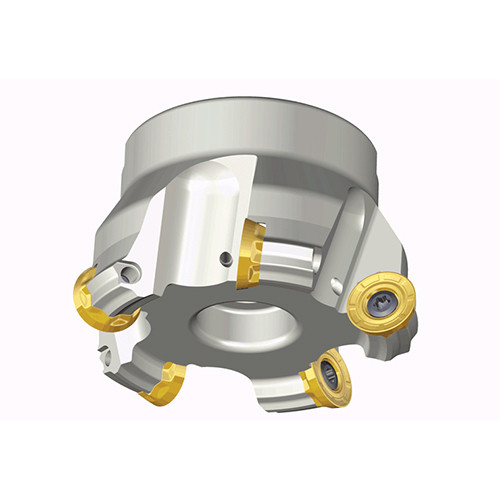

Face mills with positive round inserts of RXM(H)X for general profiling

Additional information

Weight 4.3950 kg
Dimensions
barcode
Additional Information

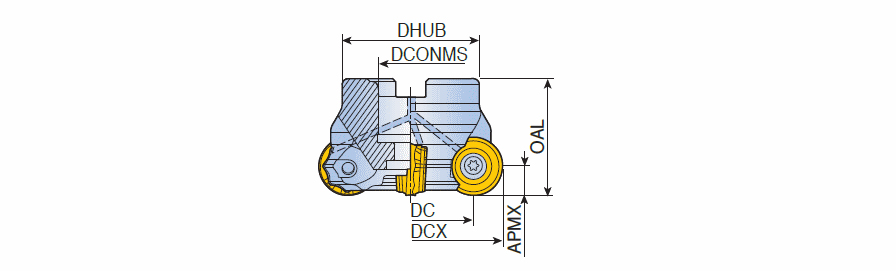

Cutting Diameter (DC): 160 mm
Master Insert Identification (MIID): RXMX 2006-M
Cutting Item Count (CICT): 8
Body Material: Steel
Depth of Cut Maximum (APMX): 10 mm
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Connection Diameter Machine Side (DCONMS): 40 mm
Measurement Type: Metric
Overall Length (OAL): 63 mm
Unit: M

Brand

Taegutec
