Taegutec TFMRY 350-16R-16

Product Code: 3108168

$733.23$666.57 Ex. GST

Product Code: 3108168 SKU 3108168 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

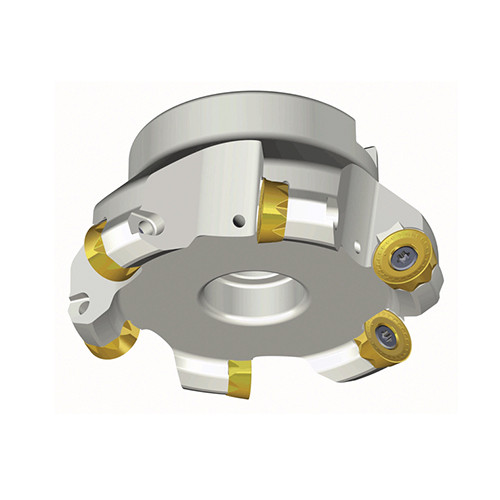

Face mills with strong positive round inserts of RYM(H)X for general profiling & general machining

Additional information

Weight 0.9600 kg
Dimensions
barcode
Additional Information

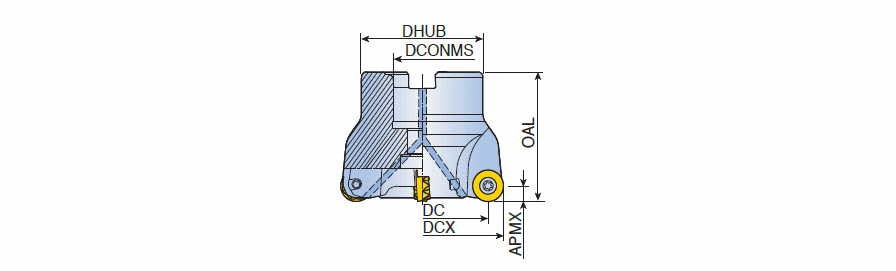

Cutting Diameter (DC): 50 mm
Master Insert Identification (MIID): RYMX 1606-M
Cutting Item Count (CICT): 3
Body Material: Steel
Depth of Cut Maximum (APMX): 8 mm
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Connection Diameter Machine Side (DCONMS): 16 mm
Measurement Type: Metric
Overall Length (OAL): 50 mm
Unit: M

Brand

Taegutec
