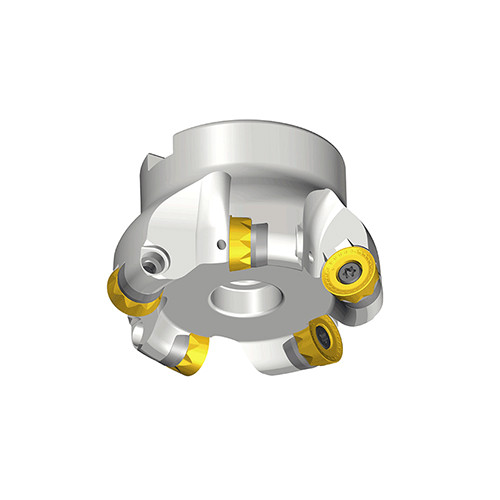

Carbide shim type face mills with strong positive round inserts of RYM(H)X for general profiling & general machining
Additional information
Weight
1.8250 kg
Dimensions
barcode
Additional Information

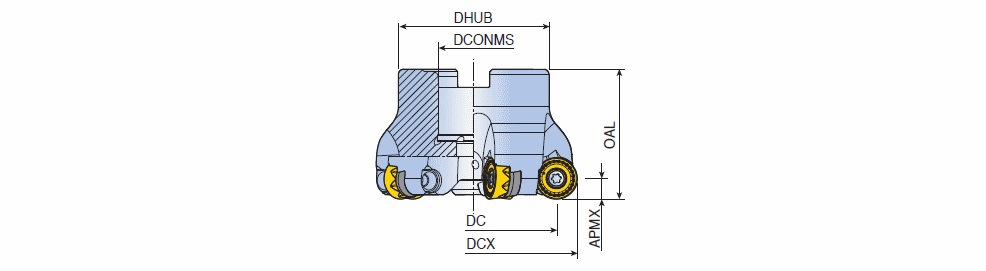

Cutting Diameter (DC/DCX): 100 mm
Hub Diameter (DHUB): 66 mm
Cutting Diameter (DC): 80 mm
Master Insert Identification (MIID): RYMX 2007-M
Cutting Diameter Maximum (DCX): 100 mm
Body Material: Steel
Cutting Item Count (CICT): 5
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Depth of Cut Maximum (APMX): 10 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 32 mm
Unit: M
Overall Length (OAL): 10 mm
