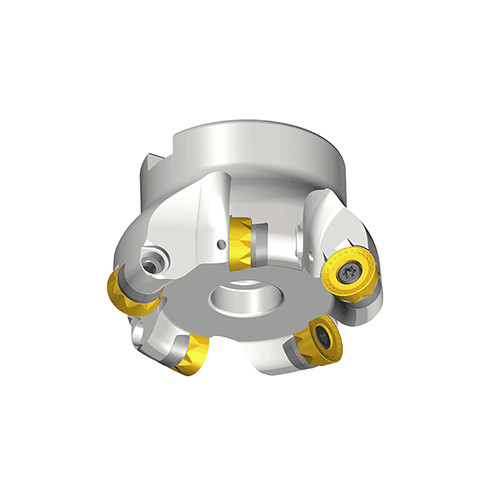

Carbide shim type face mills with strong positive round inserts of RYM(H)X for general profiling & general machining
Additional information
Weight
11.3950 kg
Dimensions
barcode
Additional Information

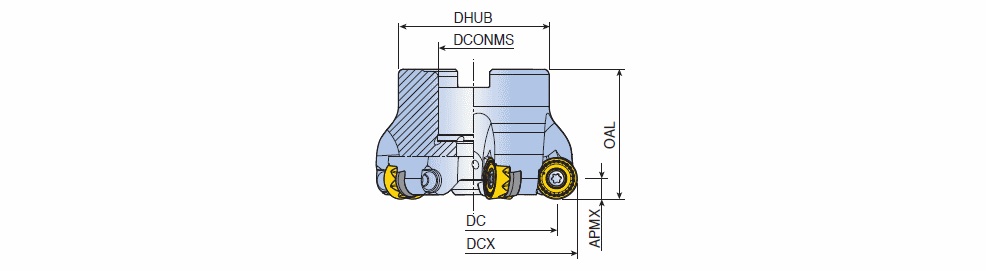

Cutting Diameter (DC/DCX): 250 mm
Hub Diameter (DHUB): 160 mm
Cutting Diameter (DC): 230 mm
Master Insert Identification (MIID): RYMX 2007-M
Cutting Diameter Maximum (DCX): 250 mm
Body Material: Steel
Cutting Item Count (CICT): 9
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Depth of Cut Maximum (APMX): 10 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 60 mm
Unit: M
Overall Length (OAL): 10 mm
