Taegutec TFMSB 10250-60R-13

Product Code: 6142250

$4,210.07$3,827.34 Ex. GST

Product Code: 6142250 SKU 6142250 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

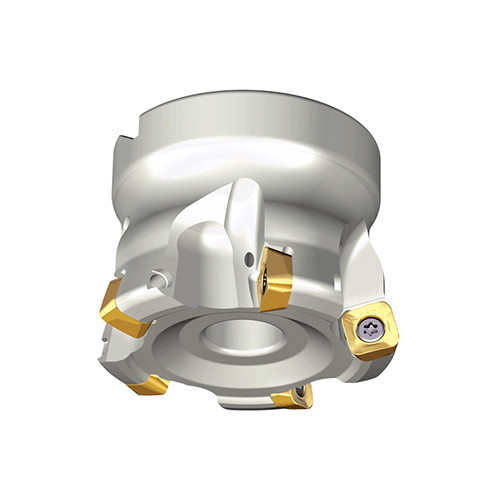

High feed face mills with positive SBMT 13 inserts of four cutting edges in max. ap 2.0 mm

Additional information

Weight 9.9550 kg
Dimensions
barcode

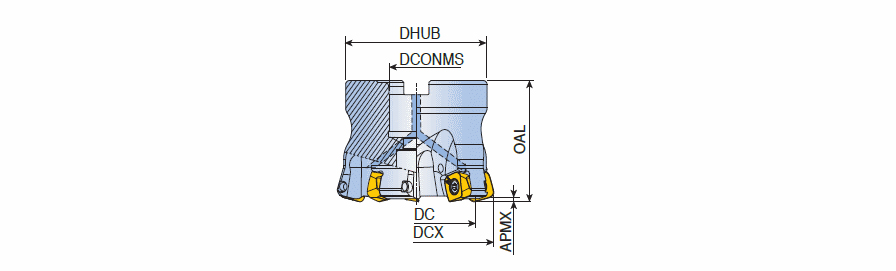

Additional Information

Cutting Diameter (DC): 250 mm
Master Insert Identification (MIID): SBMT 130625R-M
Cutting Item Count (CICT): 10
Body Material: Steel
Depth of Cut Maximum (APMX): 2 mm
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Connection Diameter Machine Side (DCONMS): 60 mm
Measurement Type: Metric
Overall Length (OAL): 60 mm
Unit: M

Brand

Taegutec
