Taegutec TFMSB 450-22R-09

Product Code: 6168823

$835.41$759.46 Ex. GST

Product Code: 6168823 SKU 6168823 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

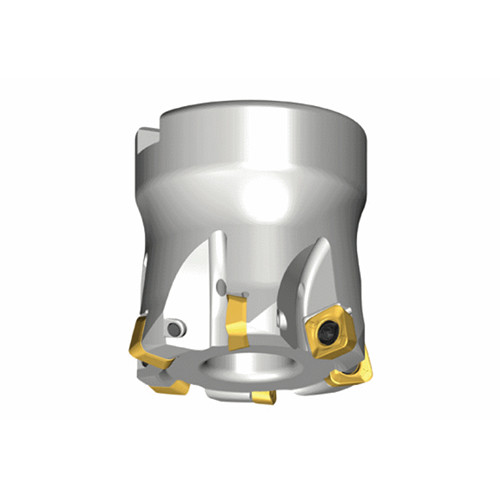

High feed face mills with positive SBMT 09 inserts of four cutting edges in max. ap 1.2 mm

Additional information

Weight 1.0350 kg
Dimensions
barcode
Additional Information

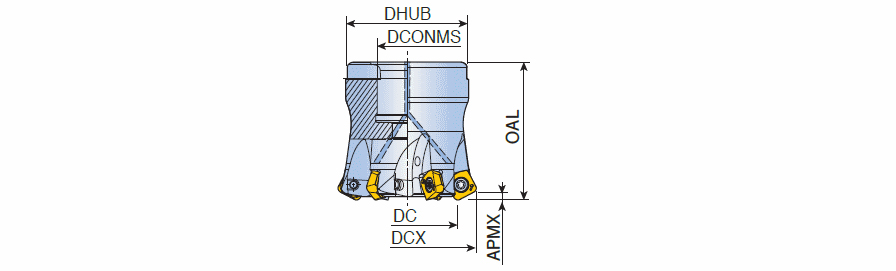

Cutting Diameter (DC): 50 mm
Master Insert Identification (MIID): SBMT 090415R-M
Cutting Item Count (CICT): 4
Body Material: Steel
Depth of Cut Maximum (APMX): 1.2 mm
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Connection Diameter Machine Side (DCONMS): 22 mm
Measurement Type: Metric
Overall Length (OAL): 50 mm
Unit: M

Brand

Taegutec
