Taegutec TFMSB 780-27R-09

Product Code: 6166622

$1,341.29$1,219.35 Ex. GST

Product Code: 6166622 SKU 6166622 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

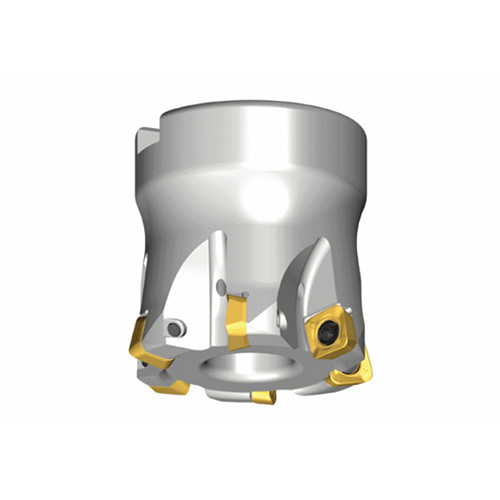

High feed face mills with positive SBMT 09 inserts of four cutting edges in max. ap 1.2 mm

Weight	1.9700 kg
Dimensions
barcode

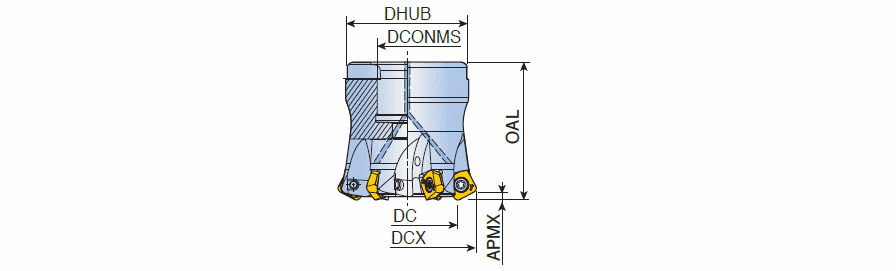

Additional Information	Cutting Diameter (DC): 80 mm Master Insert Identification (MIID): SBMT 090415R-M Cutting Item Count (CICT): 7 Body Material: Steel Depth of Cut Maximum (APMX): 1.2 mm Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Connection Diameter Machine Side (DCONMS): 27 mm Measurement Type: Metric Overall Length (OAL): 60 mm Unit: M
