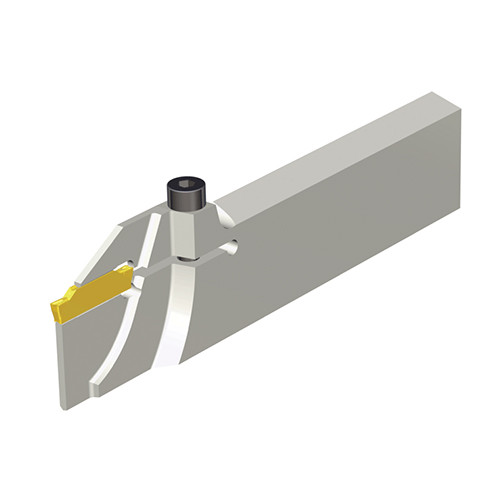

Reinforced type blades with screw clamping for grooving and parting of Traub & Index machines
Additional information
Weight
0.1700 kg
Dimensions
Length 11cm x Width cm x Depth cm
barcode
Additional Information

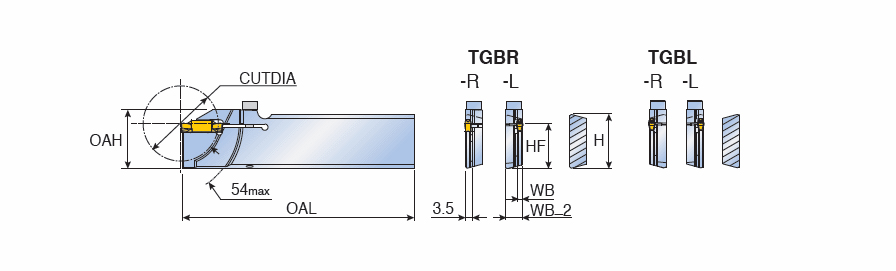

Shank Height (H): 26 mm
Work Piece Parting Diameter Maximum (CUTDIA): 4
Shank Width (B): 8 mm
Cutting Direction (HAND): Left Hand
Overall Length (OAL): 110 mm
Measurement Type: Metric
Overall Height (OAH): 27.9 mm
Master Insert Identification (MIID): ‎TDXU 3E-0.3
Application:, Ext. Grooving, Parting, Unit: M
Body Material: Steel
