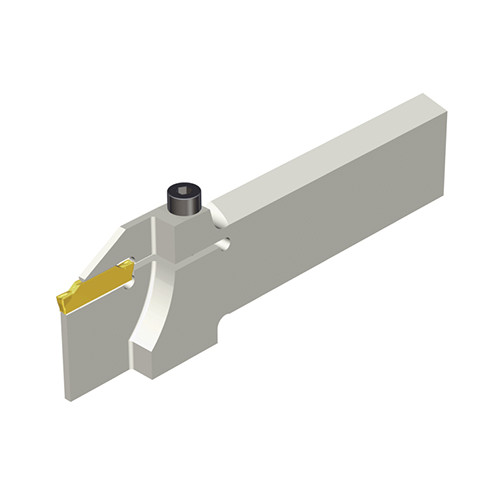

Reinforced type blades with screw clamping for grooving and parting
Additional information
Weight
0.2200 kg
Dimensions
Length 12cm x Width cm x Depth cm
barcode
Additional Information
Shank Height (H): 32 mm
Work Piece Parting Diameter Maximum (CUTDIA): 3221.1
Shank Width (B): 8 mm
Cutting Direction (HAND): Left Hand
Overall Length (OAL): 120 mm
Measurement Type: Metric
Overall Height (OAH): 33.7 mm
Master Insert Identification (MIID): ‎TDXU 2E-0.3
Application:, Ext. Grooving, Parting, Unit: M
Body Material: Steel
