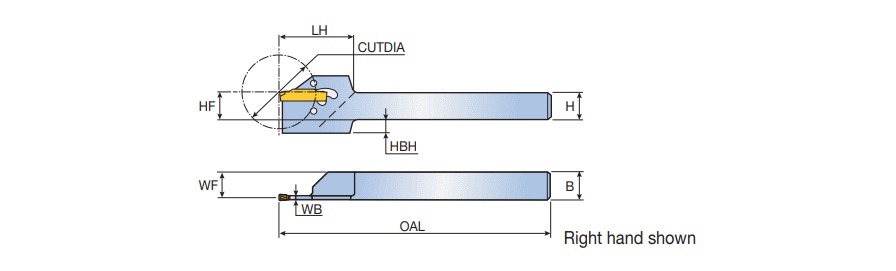

Shank Height (H): 20 mm
Work Piece Parting Diameter Maximum (CUTDIA): 202
Shank Width (B): 20 mm
Cutting Direction (HAND): Right Hand
Overall Length (OAL): 125 mm
Measurement Type: Metric
Head Length (LH): 31 mm
Master Insert Identification (MIID): ‎TDXU 3E-0.3
Application:, Ext. Grooving, Parting, Unit: M
Body Material: Steel
