Perpendicular holders for shallow axial and radial grooving
Additional information
Weight
0.7850 kg
Dimensions
barcode
Additional Information

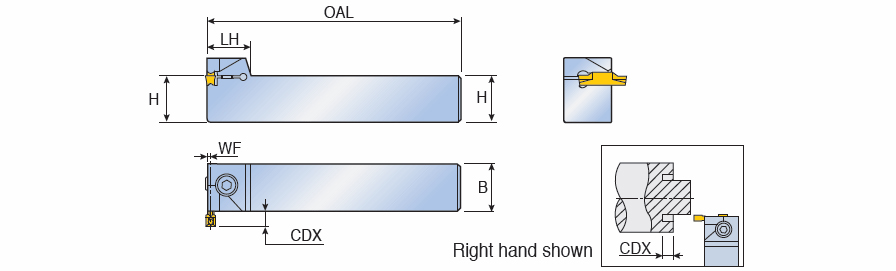

Cutting Depth Maximum (CDX): 4.8 mm
Overall Length (OAL): 150 mm
Shank Height (H): 25 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Face Grooving, Face Grooving & Turning, Face Grooving Along Shaft, Shank Width (B): 25 mm
Body Material: Steel
Functional Width (WF): 2.5 mm
Measurement Type: Metric
Head Length (LH): 22 mm
Unit: M
