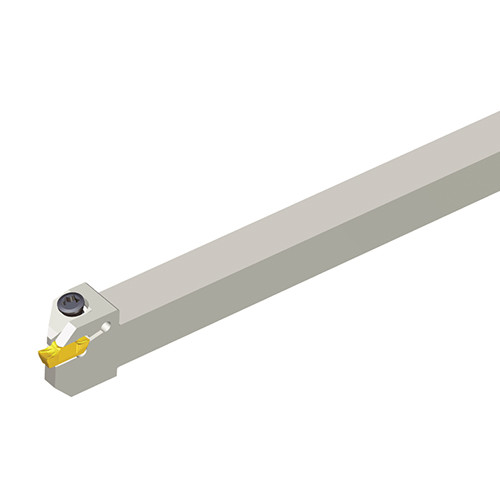

External holders for shallow grooving and face grooving with TDIM/P inserts
Additional information
Weight
0.2600 kg

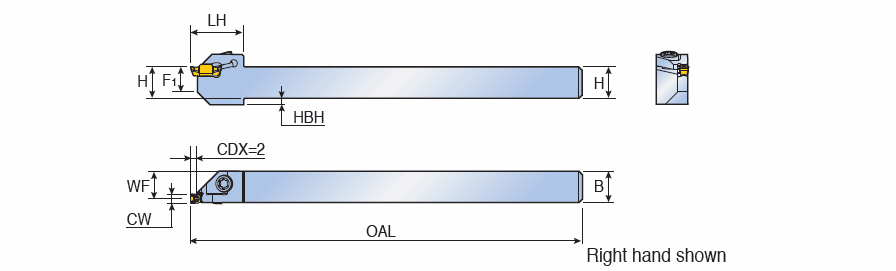

Dimensions
barcode
Additional Information
Shank Height (H): 16 mm
Body Material: Steel
Shank Width (B): 16 mm
Cutting Direction (HAND): Right Hand
Cutting Width Minimum (CWN): 2.5 mm
Measurement Type: Metric
Cutting Width Maximum (CWX): 3 mm
Insert Seat Size Code (SSC): 2
Overall Length (OAL): 125 mm
Master Insert Identification (MIID): ‎TDIM 3E-0.2
Head Length (LH): 20 mm
Unit: M
Application:, Ext. Grooving, Face Grooving, Tools for Swiss Machines
