Taegutec TGSIL 10-13-2

Product Code: 2802476

$271.85$247.14 Ex. GST

Product Code: 2802476 SKU 2802476 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

Taegutec TGSIL 10-13-2

Taegutec TGSIL 10-13-2 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

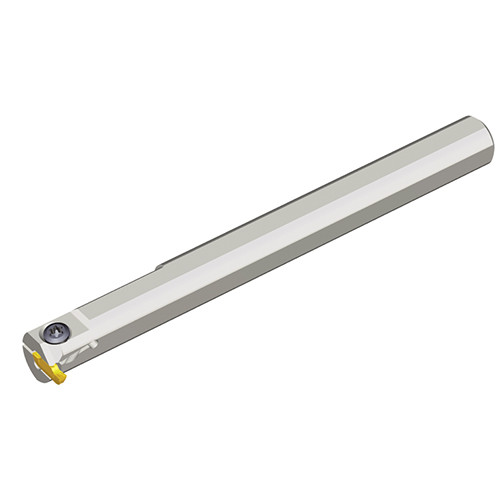

Boring bars with coolant hole for internal shallow grooving and turning on small diameter of Dmin = 12.5 mm with TDIM/P inserts

Additional information

Weight	0.0890 kg
Dimensions
barcode

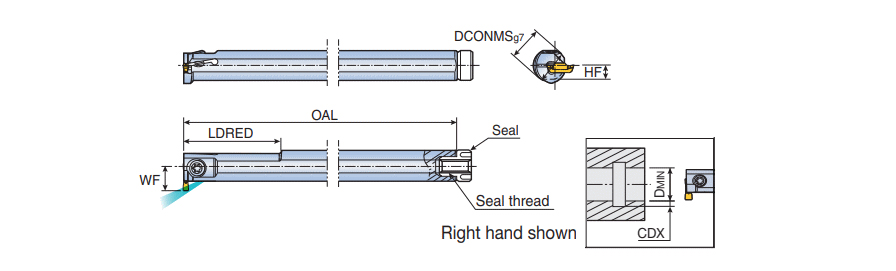

Additional Information	Cutting Depth Maximum (CDX): 2.5 mm Overall Length (OAL): 125 mm Shank Width (B): 5 mm Application:, Int. Grooving, Tools for Swiss Machines, Minimum Bore Diameter (DMIN): 12.5 mm Body Material: Steel Functional Width (WF): 7.6 mm Measurement Type: Metric Head Length (LH): 25 mm Unit: M

Brand

Taegutec
