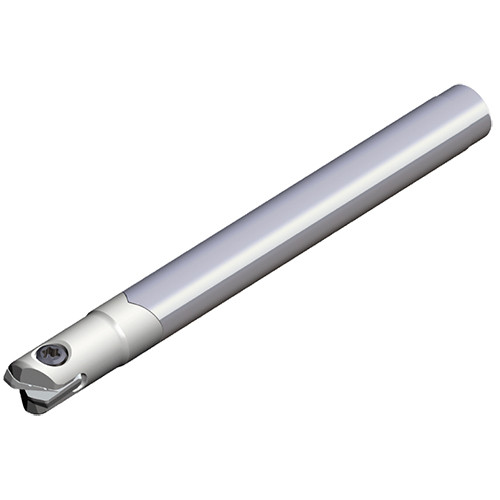

Nano High Feed end mills with High Feed HFN inserts & carbide shank for better rigidity & miniature components
Additional information
Weight
0.1100 kg
Dimensions
barcode
Additional Information

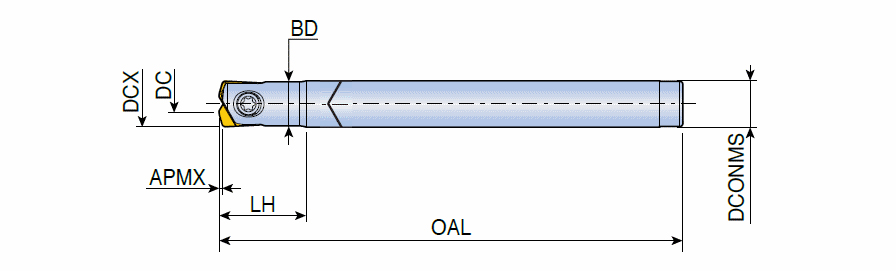

Cutting Diameter (DC/DCX): 6 mm
Connection Diameter Machine Side (DCONMS): 6 mm
Cutting Diameter (DC): 3 mm
Master Insert Identification (MIID): HFN 060-M
Cutting Item Count (CICT): 2
Head Length (LH): 25 mm
Depth of Cut Maximum (APMX): 0.3 mm
Measurement Type: Metric
Overall Length (OAL): 140 mm
Body Material: Steel
Shank Type: Round
Cutting Diameter Maximum (DCX): 6 mm

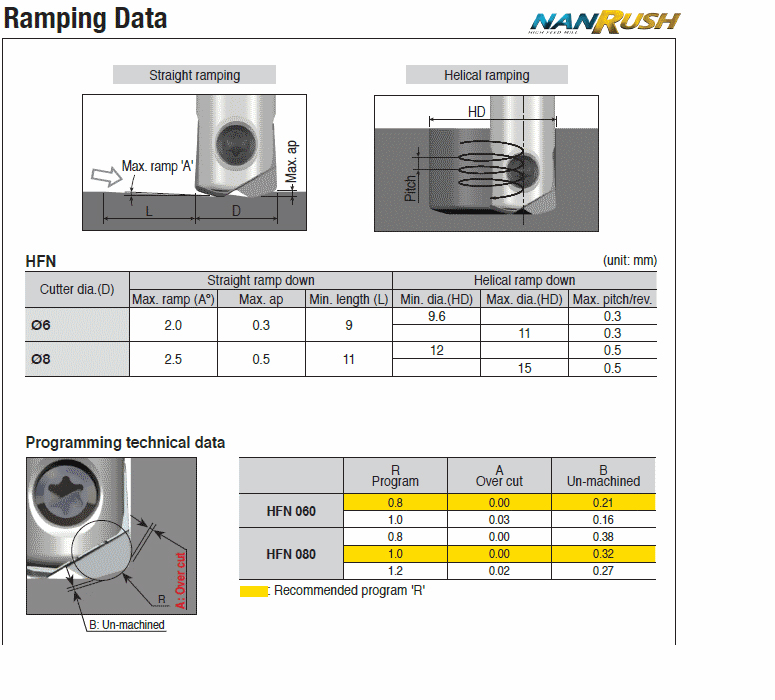

Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M
