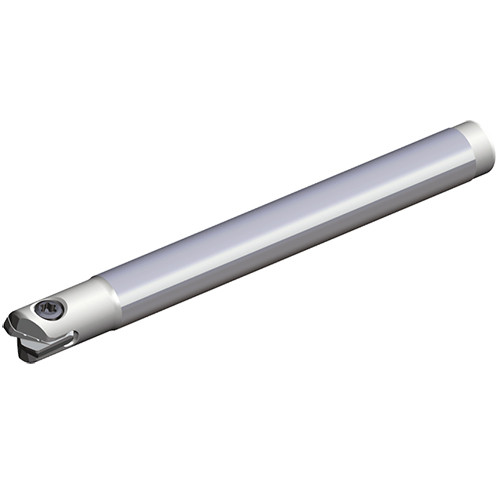

Nano High Feed end mills with High Feed HFN inserts & internal coolant for miniature components
Additional information
Weight
0.1150 kg
Dimensions
barcode
Additional Information

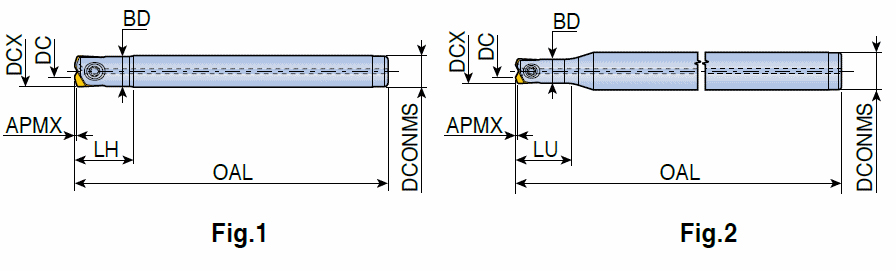

Cutting Diameter (DC/DCX): 6 mm
Master Insert Identification (MIID): HFN 060-M
Cutting Diameter (DC): 3 mm
Head Length (LH): –
Cutting Item Count (CICT): 2
Usable Length (LU): 13 mm
Depth of Cut Maximum (APMX): 0.3 mm
Measurement Type: Metric
Overall Length (OAL): 120 mm
Body Material: Steel
Shank Type: Round
Cutting Diameter Maximum (DCX): 6 mm
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M
Connection Diameter Machine Side (DCONMS): 10 mm
