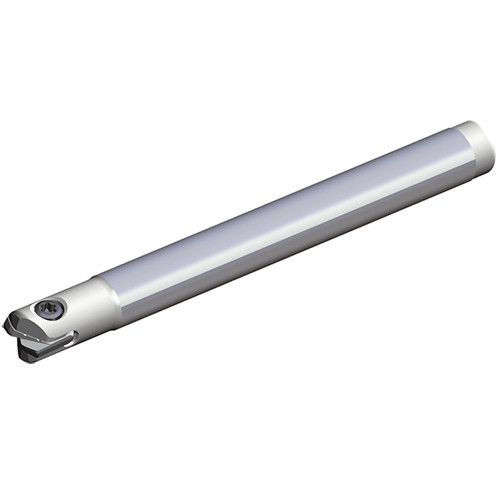

Nano High Feed end mills with High Feed HFN inserts & internal coolant for miniature components
Additional information
Weight
0.0950 kg
Dimensions
barcode
Additional Information

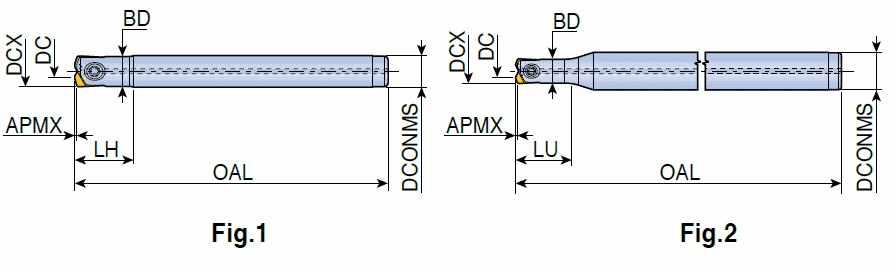

Cutting Diameter (DC/DCX): 8 mm
Master Insert Identification (MIID): HFN 080-M
Cutting Diameter (DC): 4 mm
Head Length (LH): 18 mm
Cutting Item Count (CICT): 2
Usable Length (LU): –
Depth of Cut Maximum (APMX): 0.5 mm
Measurement Type: Metric
Overall Length (OAL): 80 mm
Body Material: Steel
Shank Type: Round
Cutting Diameter Maximum (DCX): 8 mm
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M
Connection Diameter Machine Side (DCONMS): 8 mm
