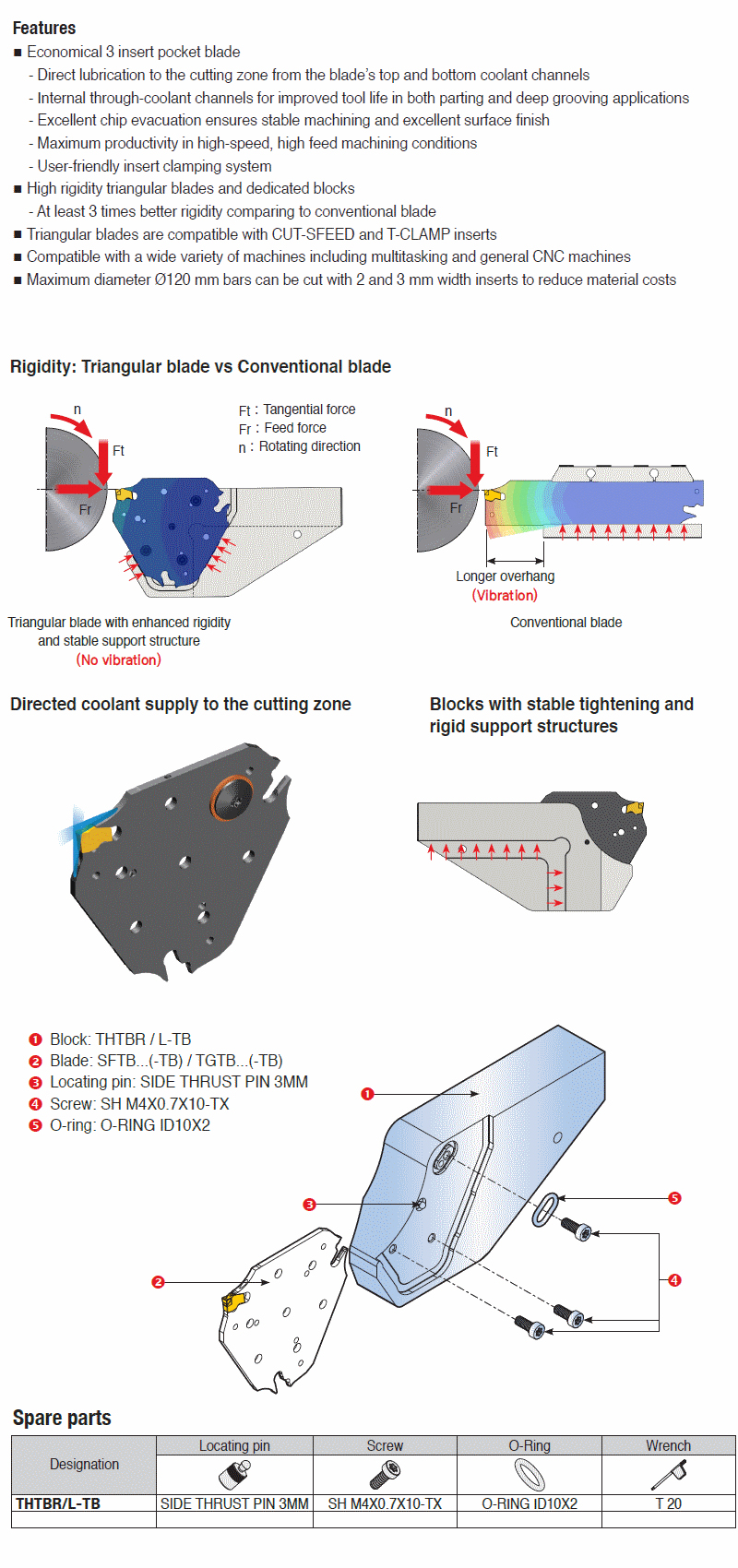

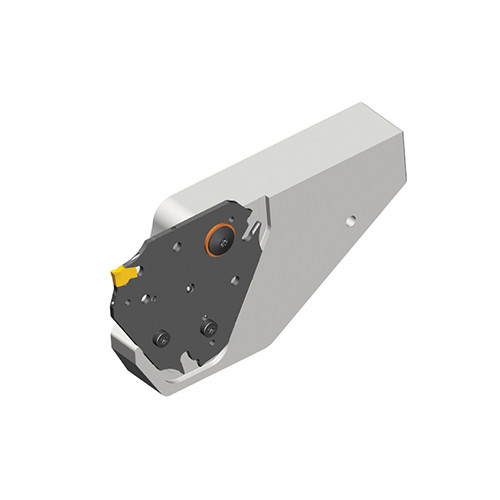

Ultra Rigid Blocks for Parting and deep grooving with SFTB/TGTB triangular blades and high pressure coolant
Additional information
Weight
1.1050 kg
Dimensions
barcode
Additional Information
Cutting Direction (HAND): Left Hand

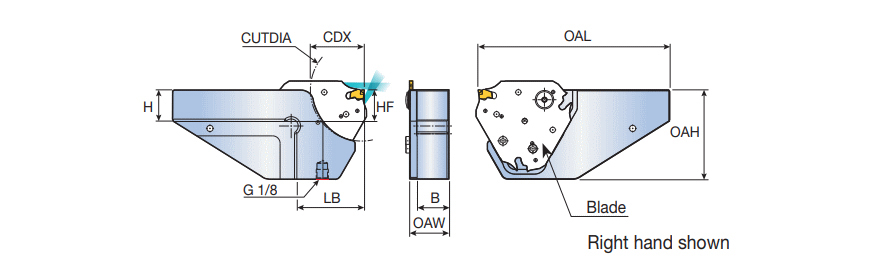

Body Length (LB): 51.5 mm
Overall Length (OAL): 150 mm
Body Material: Steel
Height: 25 mm
Overall Width (OAW): 28.5 mm
Shank Width (B): 22.5 mm
Overall Height (OAH): 72 mm
Shank Height (H): 25 mm
Work Piece Parting Diameter Maximum (CUTDIA): 82 mm
Measurement Type: Metric
Unit: M
