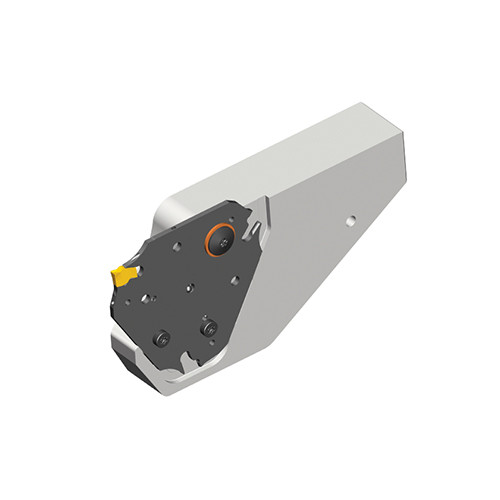

Ultra Rigid Blocks for Parting and deep grooving with SFTB/TGTB triangular blades and high pressure coolant
Additional information
Weight
0.7400 kg
Dimensions
barcode
Additional Information
Cutting Direction (HAND): Right Hand

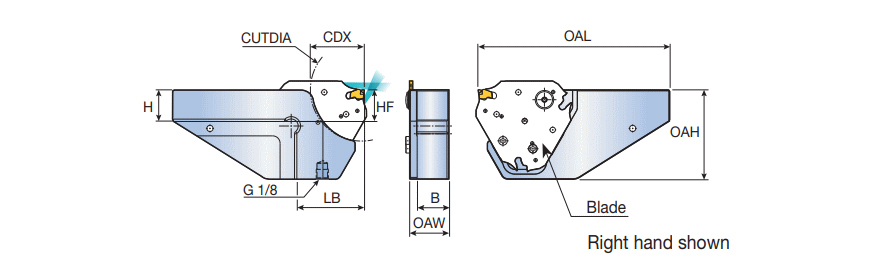

Body Length (LB): 51.5 mm
Overall Length (OAL): 140 mm
Body Material: Steel
Height: 20 mm
Overall Width (OAW): 23.5 mm
Shank Width (B): 17.5 mm
Overall Height (OAH): 72 mm
Shank Height (H): 20 mm
Work Piece Parting Diameter Maximum (CUTDIA): 82 mm
Measurement Type: Metric
Unit: M
