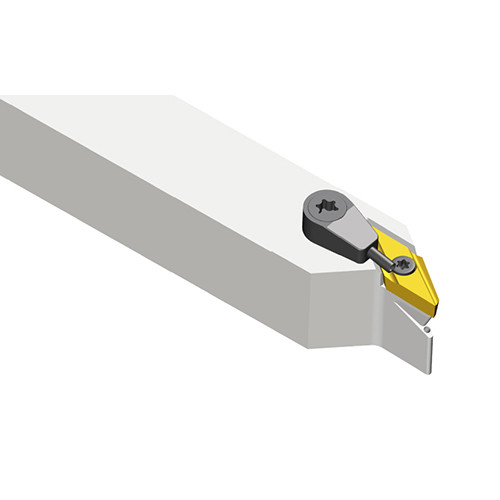

Screw type high pressure coolant back turning holders with 53° approach angle and BTVC inserts for small parts machining on swiss machines
Additional information
Weight
0.1350 kg
barcode
Additional Information

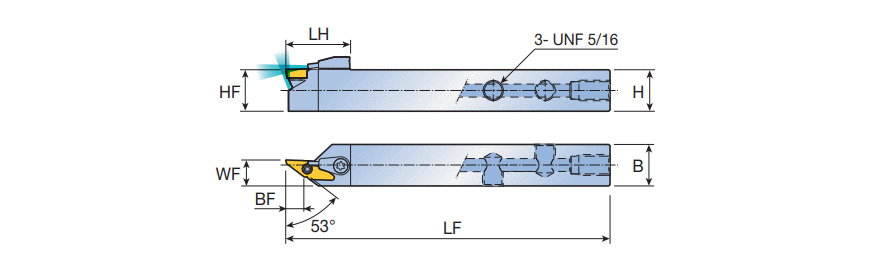

Shank Height (H): 12 mm
Application:, Ext 53° App 35°Diamond, Tools for Swiss Machines, Shank Width (B): 12 mm
Body Material: Steel
Head Length (LH): 25 mm
Measurement Type: Metric
Functional Width (WF): 10 mm
Unit: M
Cutting Direction (HAND): Right Hand
