Taegutec TMIHN 12-16-8

Product Code: 6138269

$238.35$216.68 Ex. GST

Product Code: 6138269 SKU 6138269 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

Taegutec TMIHN 12-16-8

Taegutec TMIHN 12-16-8 - Image 2

Taegutec TMIHN 12-16-8 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

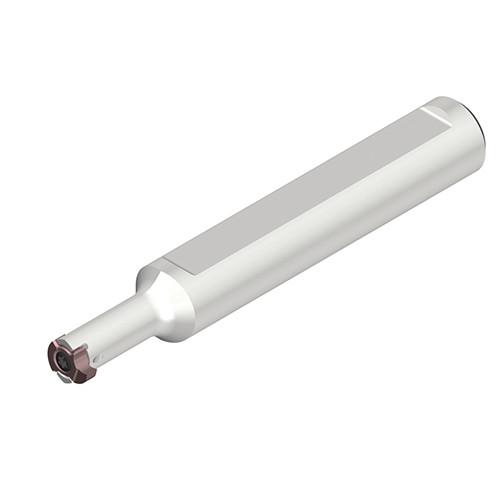

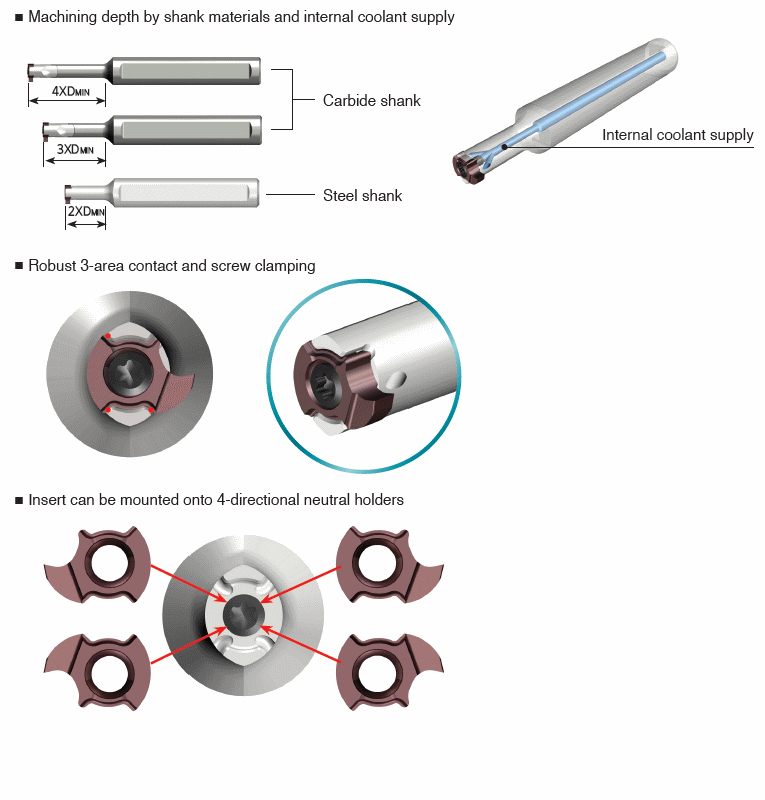

Small size boring bar with coolant holes for internal shallow grooving on small diameter Dmin=10mm with TMIS 8 inserts

Additional information

Weight	0.0630 kg
Dimensions
barcode

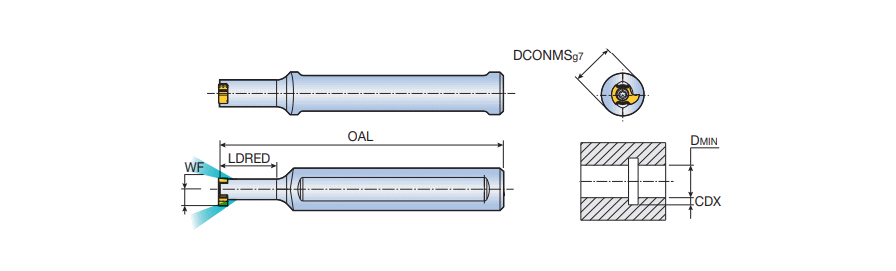

Additional Information	Connection Diameter Machine Side (DCONMS): 12 mm Functional Width (WF): 4.7 mm Minimum Bore Diameter (DMIN): 10 mm Body Material: Steel Reduced Body Diameter Length (LDRED): 16 mm Measurement Type: Metric Cutting Direction (HAND): Neutral Overall Length (OAL): 80 mm Application:, Int. Groove & Turn, Int. Grooving, Tools for Swiss Machines, Unit: M

Brand

Taegutec
