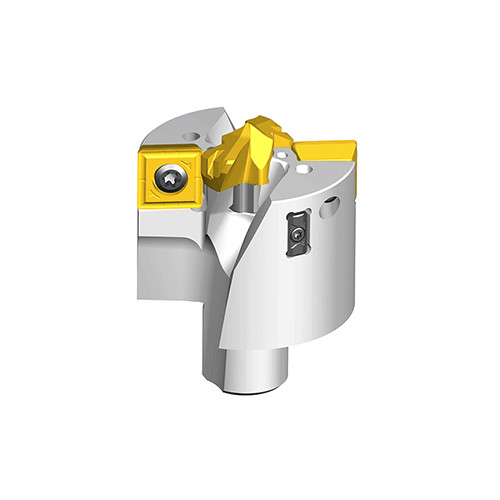

Modular large diameter drill heads with coolant holes and ground guide pad mounted on various length Modular drill holders
Additional information
Weight
0.2400 kg
barcode
Additional Information
Cutting Diameter (DC): 33 mm
Master Insert Identification (MIID): TCD-159-P-CO+
Application:, Drilling, Connection Diameter Machine Side (DCONMS): 12.8 mm
Protruding Length (LPR): 29.8 mm
Pilot Drill Diameter (PDD): 15.9 mm
Insert Seat Size Code (SSC): 15 mm
Body Material: Steel
Measurement Type: Metric
Unit: M
Point Length (PL): 3.97 mm
