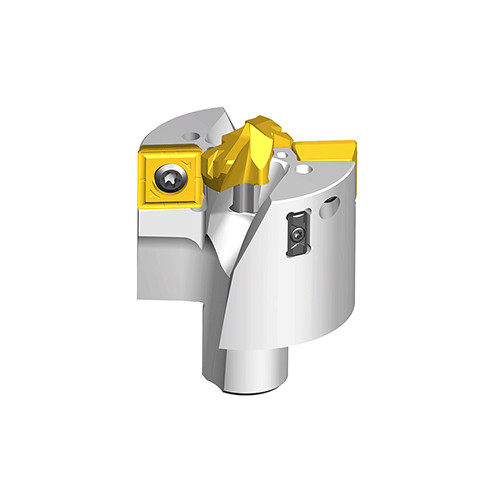

Modular large diameter drill heads with coolant holes and ground guide pad mounted on various length Modular drill holders
Additional information
Weight
0.2400 kg
barcode
Additional Information
Cutting Diameter (DC): 39 mm
Master Insert Identification (MIID): TCD-189-P-CO+
Application:, Drilling, Connection Diameter Machine Side (DCONMS): 15.2 mm
Protruding Length (LPR): 35.2 mm
Pilot Drill Diameter (PDD): 18.9 mm
Insert Seat Size Code (SSC): 18 mm
Body Material: Steel
Measurement Type: Metric
Unit: M
Point Length (PL): 4.46 mm
