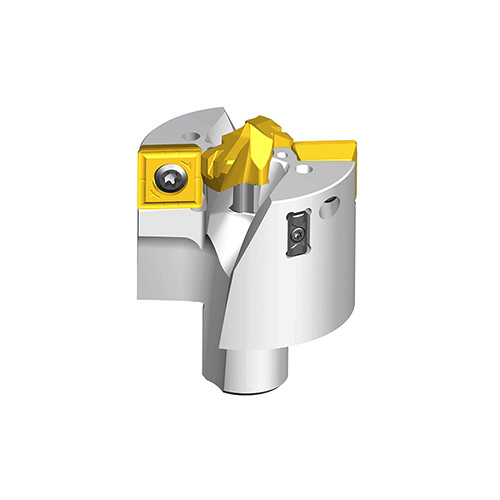

Modular large diameter drill heads with coolant holes and ground guide pad mounted on various length Modular drill holders
Additional information
Weight
0.3700 kg
barcode
Additional Information
Cutting Diameter (DC): 44 mm
Master Insert Identification (MIID): TCD-239-P-CO+
Application:, Drilling, Connection Diameter Machine Side (DCONMS): 17.6 mm
Protruding Length (LPR): 40.8 mm
Pilot Drill Diameter (PDD): 23.9 mm
Insert Seat Size Code (SSC): 23 mm
Body Material: Steel
Measurement Type: Metric
Unit: M
Point Length (PL): 5.28 mm
