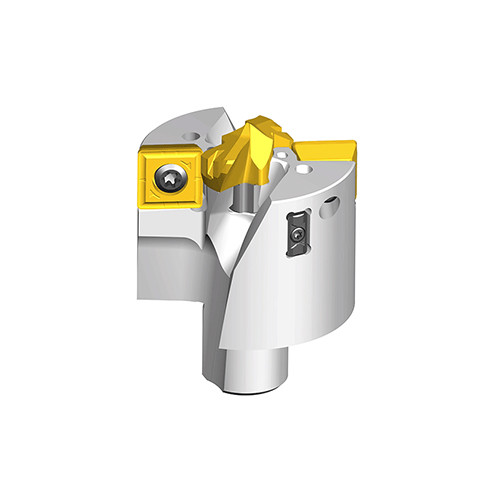

Modular large diameter drill heads with coolant holes and ground guide pad mounted on various length Modular drill holders
Additional information
Weight
0.9500 kg
barcode
Additional Information
Cutting Diameter (DC): 47 mm
Master Insert Identification (MIID): TCD-229-P-CO+
Application:, Drilling, Connection Diameter Machine Side (DCONMS): 18.4 mm
Protruding Length (LPR): 42.3 mm
Pilot Drill Diameter (PDD): 22.9 mm
Insert Seat Size Code (SSC): 22 mm
Body Material: Steel
Measurement Type: Metric
Unit: M
Point Length (PL): 5.11 mm
