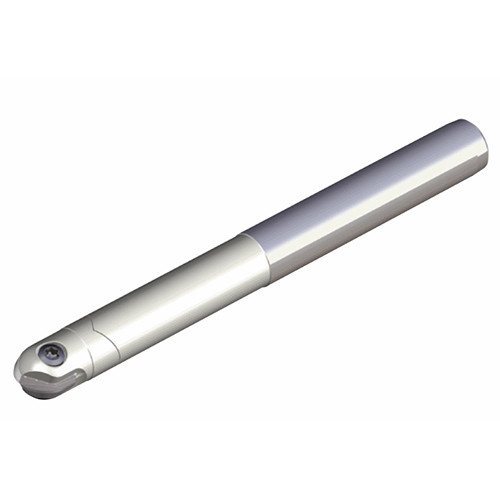

End mill holders for finishing applications with NFB & NFR inserts and carbide shank of better rigidity
Additional information
Weight
0.6650 kg
Dimensions
barcode
Additional Information

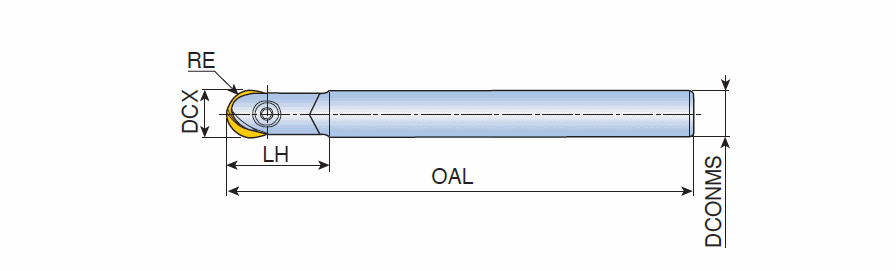

Cutting Diameter (DC/DCX): 16 mm
Connection Diameter Machine Side (DCONMS): 16 mm
Cutting Diameter (DC): 16 mm
Master Insert Identification (MIID): NFB 160-SM
Cutting Item Count (CICT): 2
Head Length (LH): 70 mm
Depth of Cut Maximum (APMX): 8 mm
Corner Radius (RE): 8 mm
Overall Length (OAL): 200 mm
Measurement Type: Metric
Shank Type: Round
Body Material: Steel
Application:, Helical Interpolation, Profiling, Rampdown, Side Plunging, Unit: M
