Taegutec TNF 160-M08

Product Code: 3109546

$353.95$321.77 Ex. GST

Product Code: 3109546 SKU 3109546 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

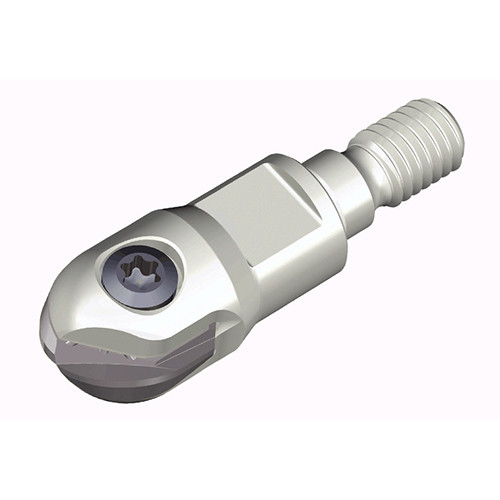

Modular end mill holders with T-FLEXTEC adaptation and NFB or NFR inserts for finishing operations

Weight	0.1450 kg
Dimensions
barcode

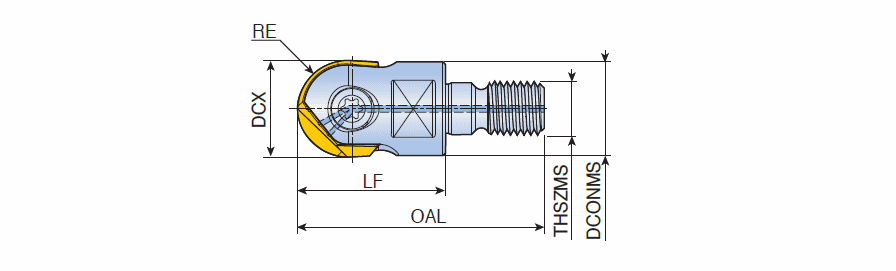

Additional Information	Cutting Diameter (DC/DCX): 16 mm Head Length (LH): 30 mm Cutting Diameter (DC): 16 mm Connection Thread Nominal Size Machine Side (THSZMS): M08 Cutting Item Count (CICT): 2 Measurement Type: Metric Overall Length (OAL): 47.5 mm Body Material: Steel Application:, Helical Interpolation, Profiling, Rampdown, Side Plunging, Unit: M Master Insert Identification (MIID): NFB 160-SM
