Home » Shop » CUTTING TOOLS » Carbide » MILLING CUTTER » Taegutec TNF 200-25M
$535.46$486.78 Ex. GST

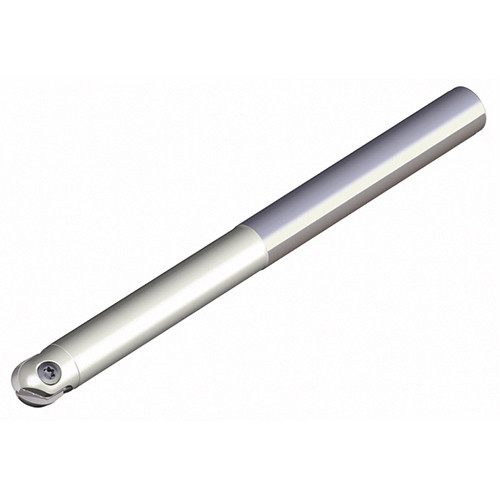

End mill holders with cylindrical steel shank & NFB or NFR inserts for finishing operations

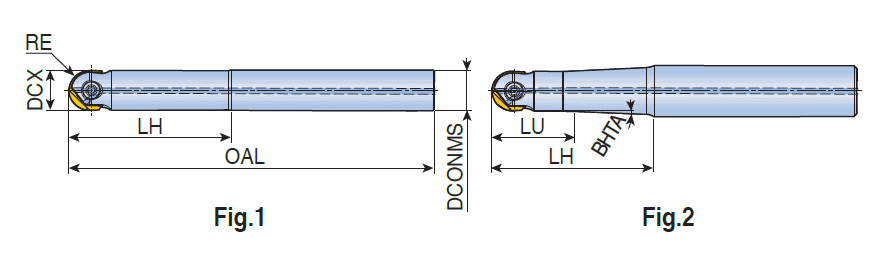

Cutting Diameter (DC/DCX): 20 mm Master Insert Identification (MIID): NFB 200-SM Cutting Diameter (DC): 20 mm Head Length (LH): 80 mm Cutting Item Count (CICT): 2 Corner Radius (RE): 10 mm Overall Length (OAL): 180 mm Body Half Taper Angle (BHTA): 2.5 Degrees Shank Type: Round Measurement Type: Metric Application:, Helical Interpolation, Profiling, Rampdown, Side Plunging, Body Material: Steel Connection Diameter Machine Side (DCONMS): 25 mm Unit: M
