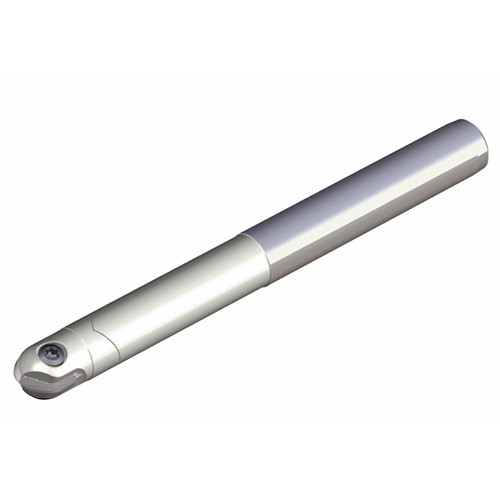

End mill holders for finishing applications with NFB & NFR inserts and carbide shank of better rigidity
Additional information
Weight
2.0000 kg
Dimensions
barcode
Additional Information

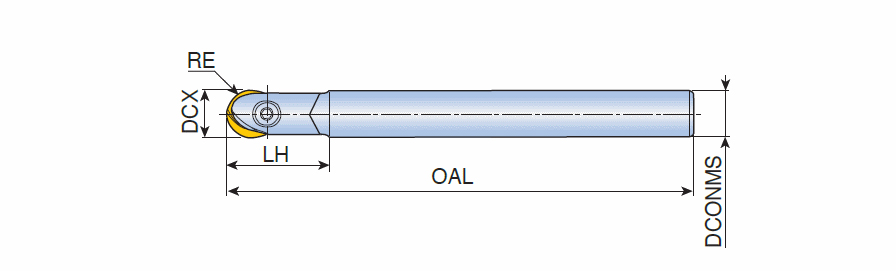

Cutting Diameter (DC/DCX): 25 mm
Connection Diameter Machine Side (DCONMS): 25 mm
Cutting Diameter (DC): 25 mm
Master Insert Identification (MIID): NFB 250-SM
Cutting Item Count (CICT): 2
Head Length (LH): 120 mm
Depth of Cut Maximum (APMX): 12.5 mm
Corner Radius (RE): 12.5 mm
Overall Length (OAL): 220 mm
Measurement Type: Metric
Shank Type: Round
Body Material: Steel
Application:, Helical Interpolation, Profiling, Rampdown, Side Plunging, Unit: M
