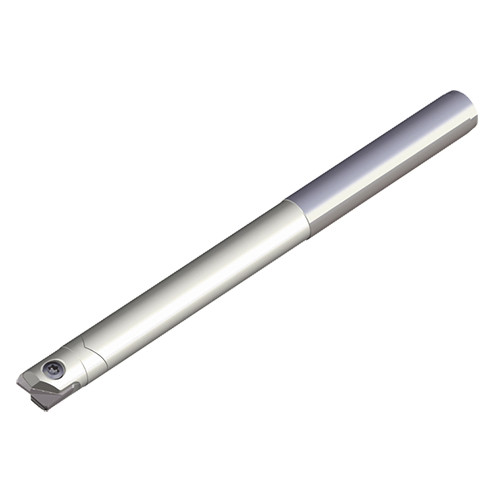

Taegutec TNFR 100-10-CT-L140

Product Code: 3110020

$948.90$862.64 Ex. GST

Product Code: 3110020 SKU 3110020 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

End mill holders for finishing with corner radius inserts of NFR and carbide shank of better rigidity

Weight	0.2100 kg
Dimensions
barcode

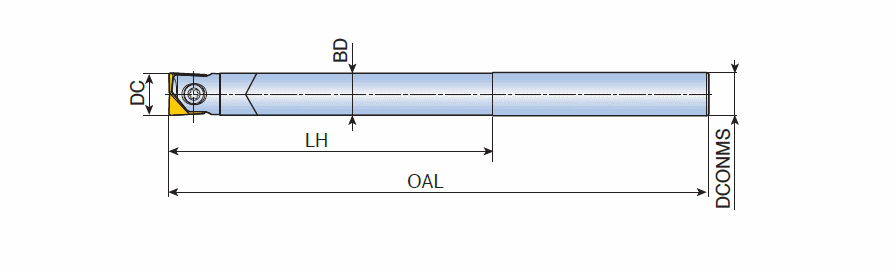

Additional Information	Cutting Diameter (DC/DCX): 10 mm Connection Diameter Machine Side (DCONMS): 10 mm Cutting Diameter (DC): 10 mm Master Insert Identification (MIID): NFR 100A-R03 Cutting Item Count (CICT): 2 Head Length (LH): 75 mm Overall Length (OAL): 140 mm Measurement Type: Metric Shank Type: Round Body Material: Steel Application:, Counter Boring, Drill Mill, Facing, Helical Interpolation, Profiling, Rampdown, Shouldering, Side Plunging, Slotting, Step down machining, Unit: M
