Taegutec TNFR 200-20-CT-L250

Product Code: 3110022

$2,178.21$1,980.19 Ex. GST

Product Code: 3110022 SKU 3110022 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

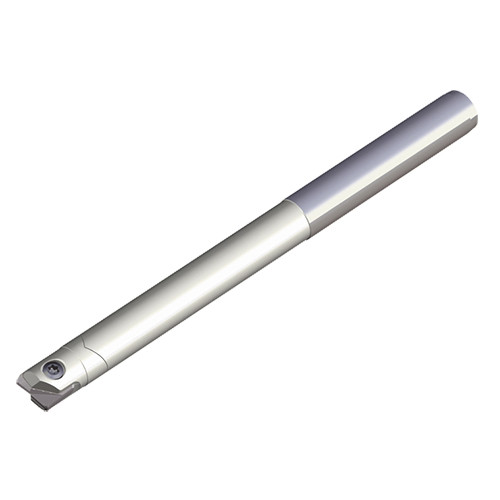

End mill holders for finishing with corner radius inserts of NFR and carbide shank of better rigidity

Weight	1.1700 kg
Dimensions
barcode

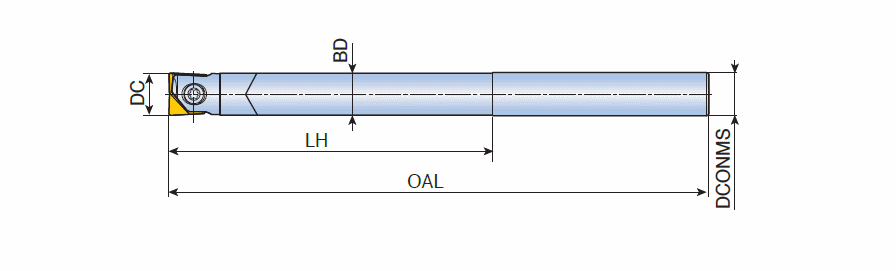

Additional Information	Cutting Diameter (DC/DCX): 20 mm Connection Diameter Machine Side (DCONMS): 20 mm Cutting Diameter (DC): 20 mm Master Insert Identification (MIID): NFR 200A-R03 Cutting Item Count (CICT): 2 Head Length (LH): 160 mm Overall Length (OAL): 250 mm Measurement Type: Metric Shank Type: Round Body Material: Steel Application:, Counter Boring, Drill Mill, Facing, Helical Interpolation, Profiling, Rampdown, Shouldering, Side Plunging, Slotting, Step down machining, Unit: M
