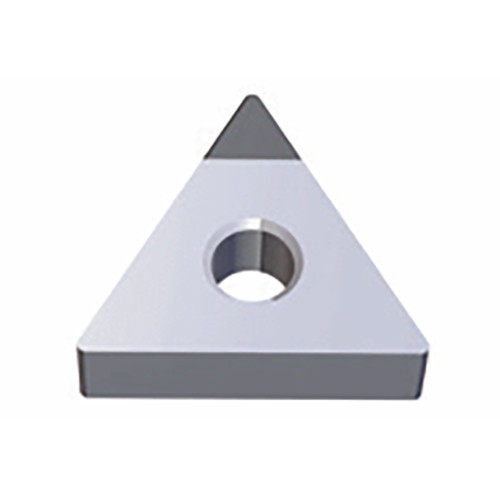

Taegutec TNGA 160404 LN TB7015

Applicable Material:, Cast Iron, Hard Materials, Grade: TB7015
Application:, Ext 60° App 60° Triangle, Ext 60° Neutral 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 0.1 mm
Corner Radius (RE): 0.4 mm
Depth of Cut Maximum (APMX): 0.5 mm
Cutting Edge Length (L): 16.5 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.3 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: PCBN
Body Material: Carbide
Coating: Uncoated
Unit: M
