Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec TNGG 160408 R CT3000
$24.89$22.63 Ex. GST

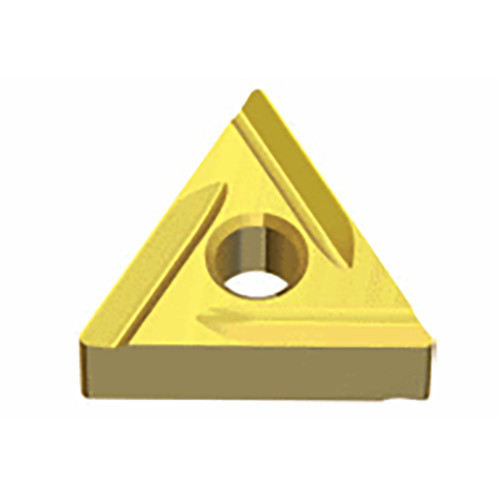

Negative ground 60° Triangular inserts for finish to medium machining with ground chip former
Applicable Material:, Steel, Stainless Steel, Cast Iron, Grade: CT3000 Application:, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 1.3 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 3.5 mm Cutting Edge Length (L): 16.5 mm Min. Turning Feed (ft(min)): 0.15 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.35 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Cermet Body Material: Carbide Coating: Cermet Unit: M
