Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec TNGN 160404 AB20
$22.89$20.81 Ex. GST

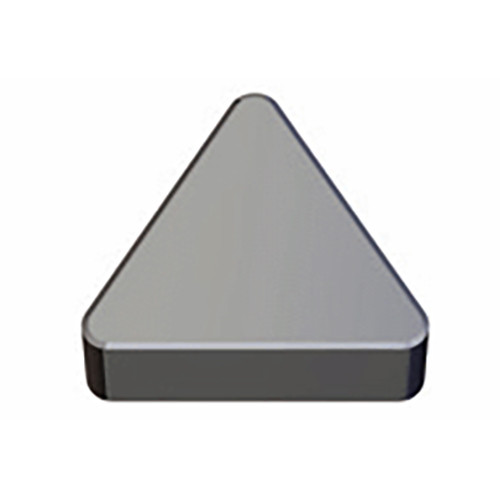

Negative Triangular ground Ceramic inserts without hole for cast iron & hardened steel machining
Applicable Material:, Hard Materials, Grade: AB20 Application:, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 0.1 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 2.5 mm Cutting Edge Length (L): 16.5 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.15 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Ceramic Body Material: Carbide Coating: TiCN+Al2O3 Unit: M
