Taegutec TNGX 2207 PNTN TT6080

Product Code: 5613697

$56.25$51.14 Ex. GST

Product Code: 5613697 SKU 5613697 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

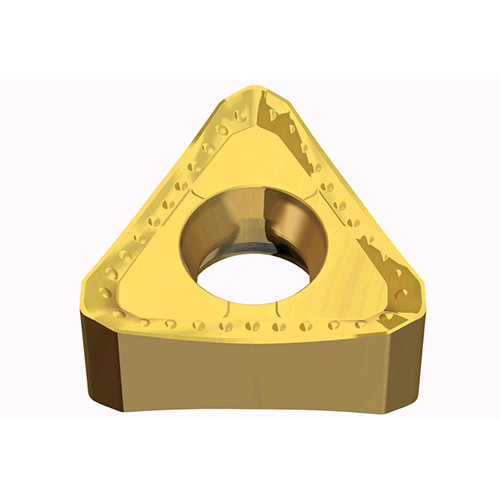

Triangular double-sided ground inserts with strong 6 cutting edges for 90° shouldering of heavy and general machining

Weight	0.0186 kg
barcode

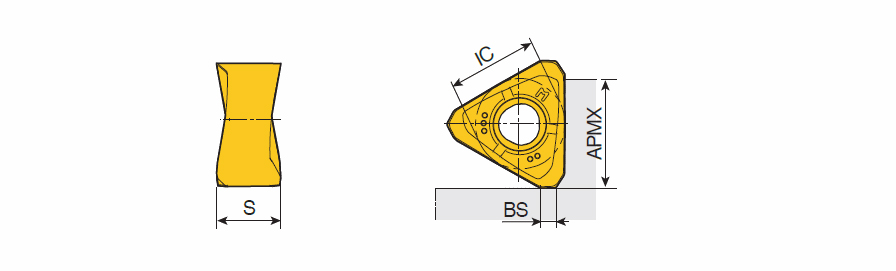

Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080 Application:, Facing, Inserts, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.3 mm/tooth Cutting Edge Length (L): 16.4 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 12 mm Minimum Feed per Tooth (fz(min)): 0.15 mm/tooth Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Insert Thickness (S): 8 mm Body Material: Carbide Coating: AlTiN+TiN Unit: M
