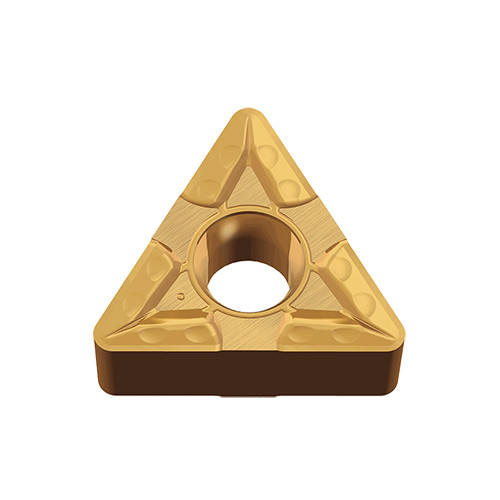

Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec TNMG 130408 MT TT5100
$14.33$13.03 Ex. GST
Negative Triangular RHINOTURN inserts for medium rough applications of steel, cast iron & stainless steel
Applicable Material:, Steel, Stainless Steel, Grade: TT5100 Application:, Ext 105° App 60° Triangle, Ext 60° Neutral 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Int 93° App 60° Triangle, Tools for Swiss Machines, Min D.O.C.: 1 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 13 mm Min. Turning Feed (ft(min)): 0.15 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.45 mm/rev Inscribed Circle Diameter (IC): 7.94 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
