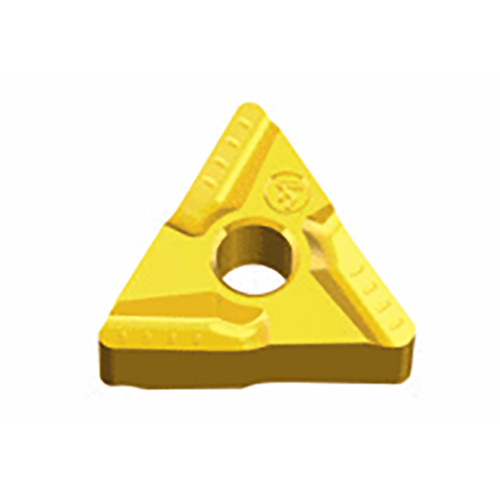

Taegutec TNMG 160404 L-VF TT8125B

Description

Negative 60° Triangular inserts for medium machining of slender bar of steel & stainless steel without vibration from high positive rake geometry

Weight	0.0074 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8125B Application:, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 0.7 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 3.5 mm Cutting Edge Length (L): 15.5 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
