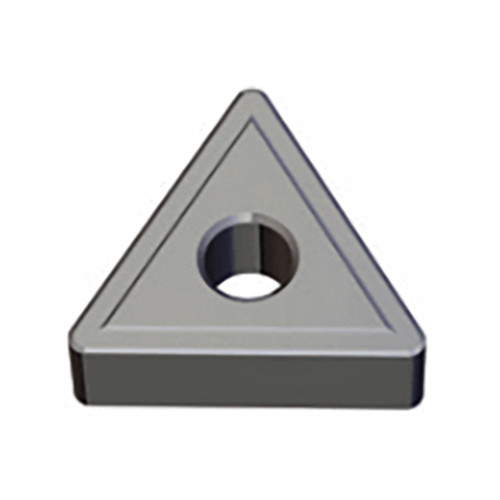

Taegutec TNMG 160408 CE AB30

Description

Negative Triangular Ceramic pressed insert of CE chip former with reinforced T-land for high speed machining of cast irons

Weight	0.0035 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: AB30 Application:, Ext 60° App 60° Triangle, Ext 60° Neutral 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Int 93° App 60° Triangle, Min D.O.C.: 0.1 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 2.5 mm Cutting Edge Length (L): 16.5 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Ceramic Body Material: Carbide Coating: TiCN+Al2O3 Unit: M
