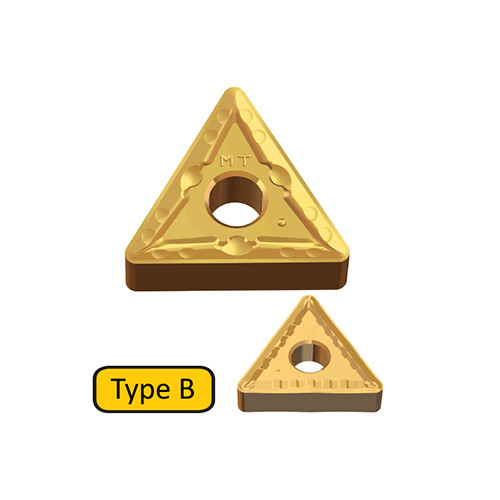

Taegutec TNMG 160408 MT PV3010

Applicable Material:, Steel, Stainless Steel, Cast Iron, Grade: PV3010
Application:, Ext 60° App 60° Triangle, Ext 60° Neutral 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 1.2 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 3.5 mm
Cutting Edge Length (L): 16.5 mm
Min. Turning Feed (ft(min)): 0.17 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.5 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: Cermet
Body Material: Carbide
Coating: TiN
Unit: M
