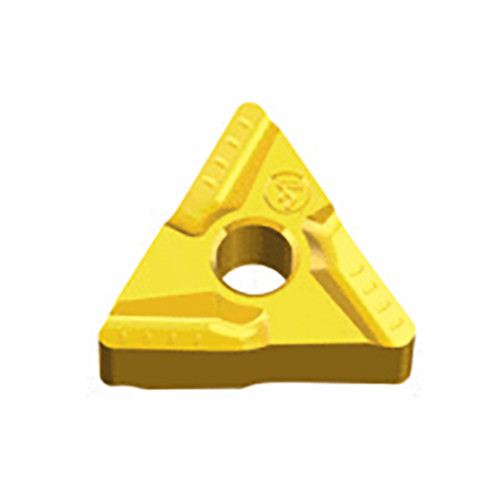

Taegutec TNMG 160408 R-VF CT3000

Description

Negative 60° Triangular inserts for medium machining of slender bar of steel & stainless steel without vibration from high positive rake geometry

Weight	0.0062 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Cast Iron, Grade: CT3000 Application:, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 1 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 3.5 mm Cutting Edge Length (L): 14.5 mm Min. Turning Feed (ft(min)): 0.12 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.35 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Cermet Body Material: Carbide Coating: Cermet Unit: M
