Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec TNMG 160408 RT TT8135B
$18.85$17.14 Ex. GST

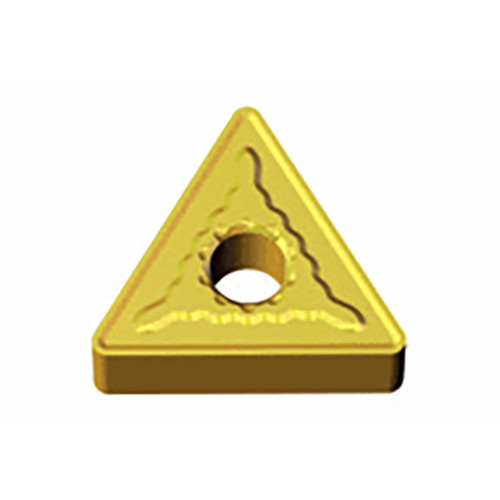

Negative 60° Triangular inserts for rough machining of steels & cast irons with very strong rake geometry
Applicable Material:, Steel, Grade: TT8135B Application:, Ext 60° App 60° Triangle, Ext 60° Neutral 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 2 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 5 mm Cutting Edge Length (L): 14.5 mm Min. Turning Feed (ft(min)): 0.25 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.65 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
